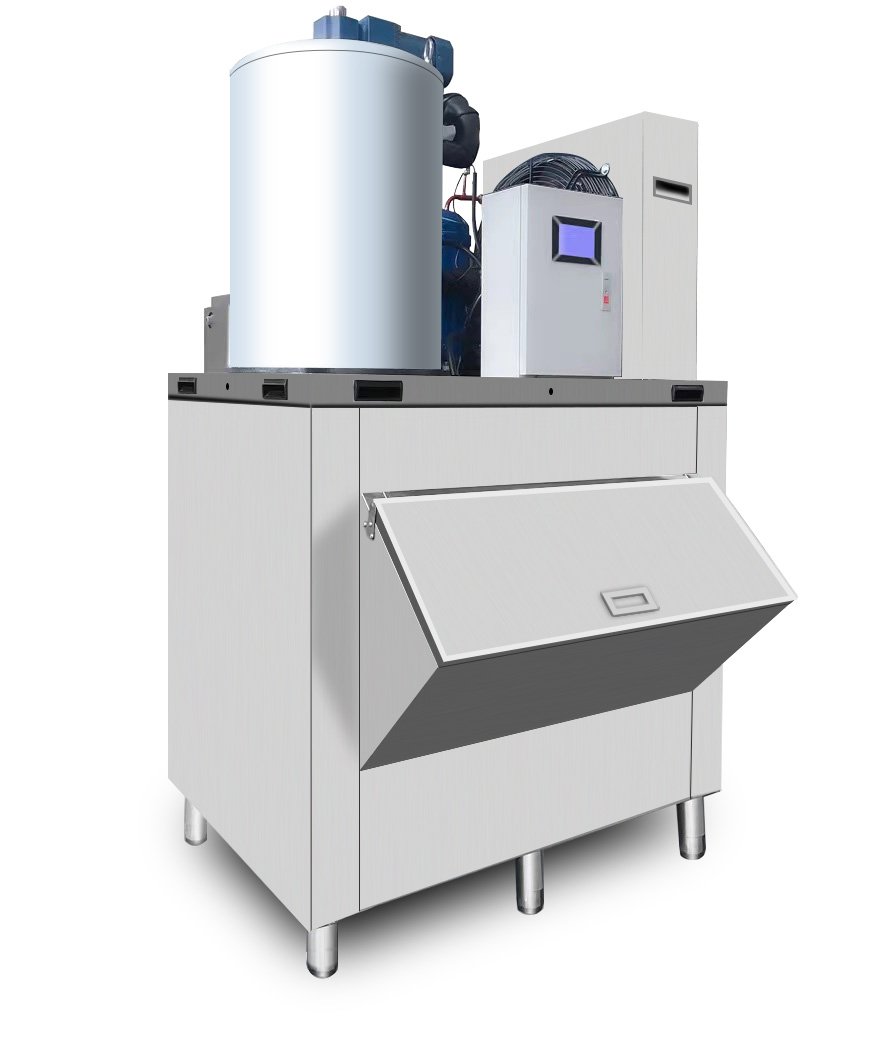

FPS-PB1000 Commercial Flake Ice Machine
Core Performance
Production：1000 kg/24h (±5%) → 41.7 kg/h peak (24-minute ice harvest cycles)
Storage：500 kg SUS304 ice bin (5-layer insulation | 50% capacity/production ratio)
Energy Efficiency：4.76 kW → 4.76 W/kg ice (Industry benchmark: 5.2-6.0W/kg)
Power System
Voltage: 380V/50Hz (±10% | 3-phase industrial power)
Compressor: Danfoss MLM058T4/MLZ058T4
→ 7.5HP semi-hermetic | 2.67m³/h displacement
→ Direct-drive dual cylinders | IP55 protection
Startup Current: ≤65A (Soft-start equipped)
Thermal Design
Cooling: Industrial air-cooled (Tropical spec)
→ High-torque dual fans (≥1800 CFM airflow)
→ Operational range: -5°C to 48°C ambient
Defrost Cycle: CO₂ hot-gas defrost (Zero water waste)
Material & Construction
Structure: Stainless steel frame
The FPS-PB1000 commercial flake ice machine is built for businesses that need a steady and large amount of flake ice. It can produce up to 1000Kg of ice per day. With a built-in storage of 500Kg, it keeps a constant supply ready for busy operations.
This machine is made from high-quality stainless steel, offering strong durability and rust resistance. It uses a powerful Danfoss 7.5HP compressor (MLM058T4/MLZ058T4) for reliable performance and long service life. The unit runs on 380V/50Hz power and supports both R404A and R22 refrigerants, making it flexible for different settings.
Equipped with an air cooling system, it connects easily to a tap water source. Its compact vertical design (1220×1180×2100mm) saves space and fits well in commercial kitchens, seafood plants, and food processing areas.
Whether you need to chill seafood, support food production, or maintain cold chain efficiency, the FPS-PB1000 commercial flake ice machine provides reliable, high-volume ice—day after day.
FEIPULI is dedicated to providing the simplest, most reliable and easy-to-use commercial ice machines.
